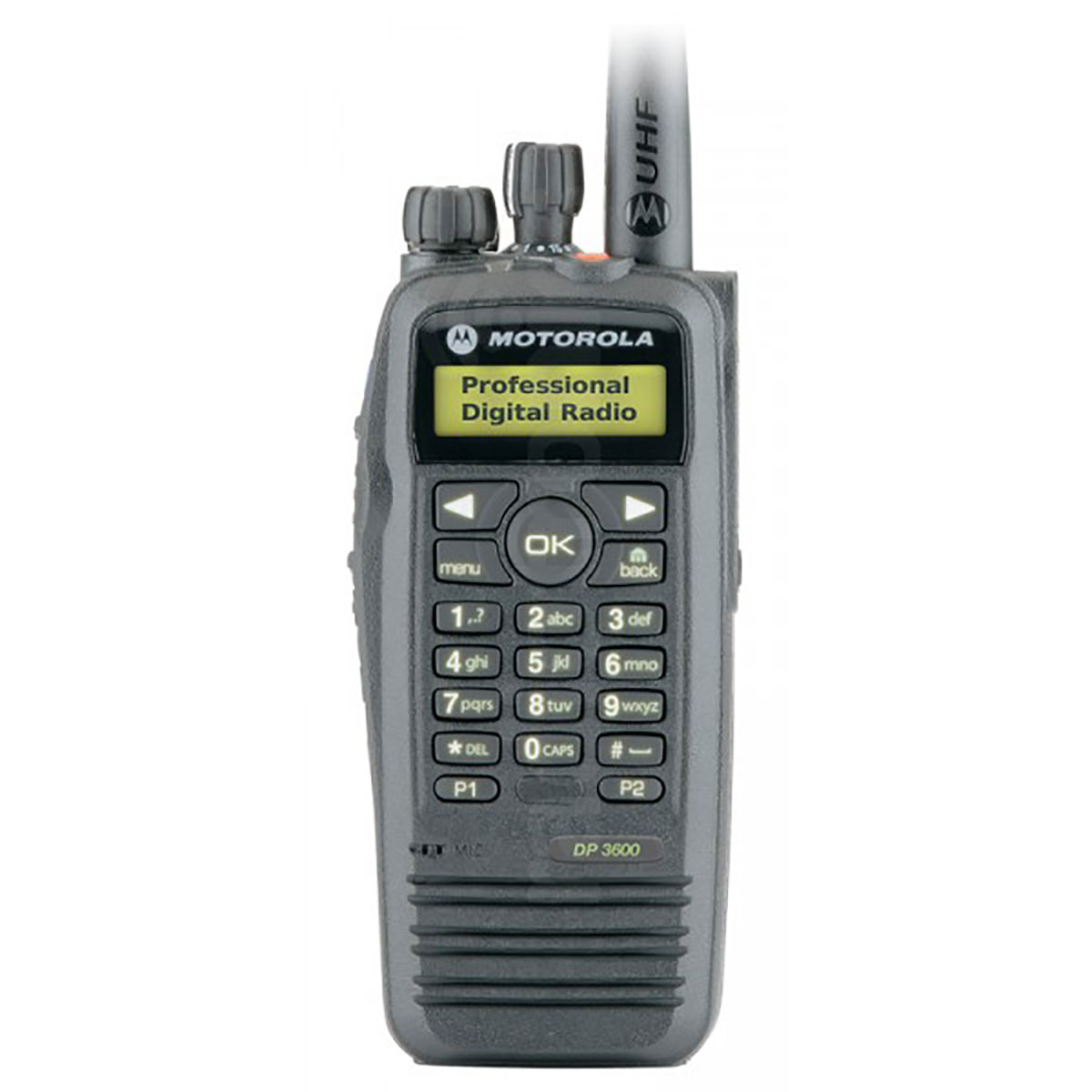

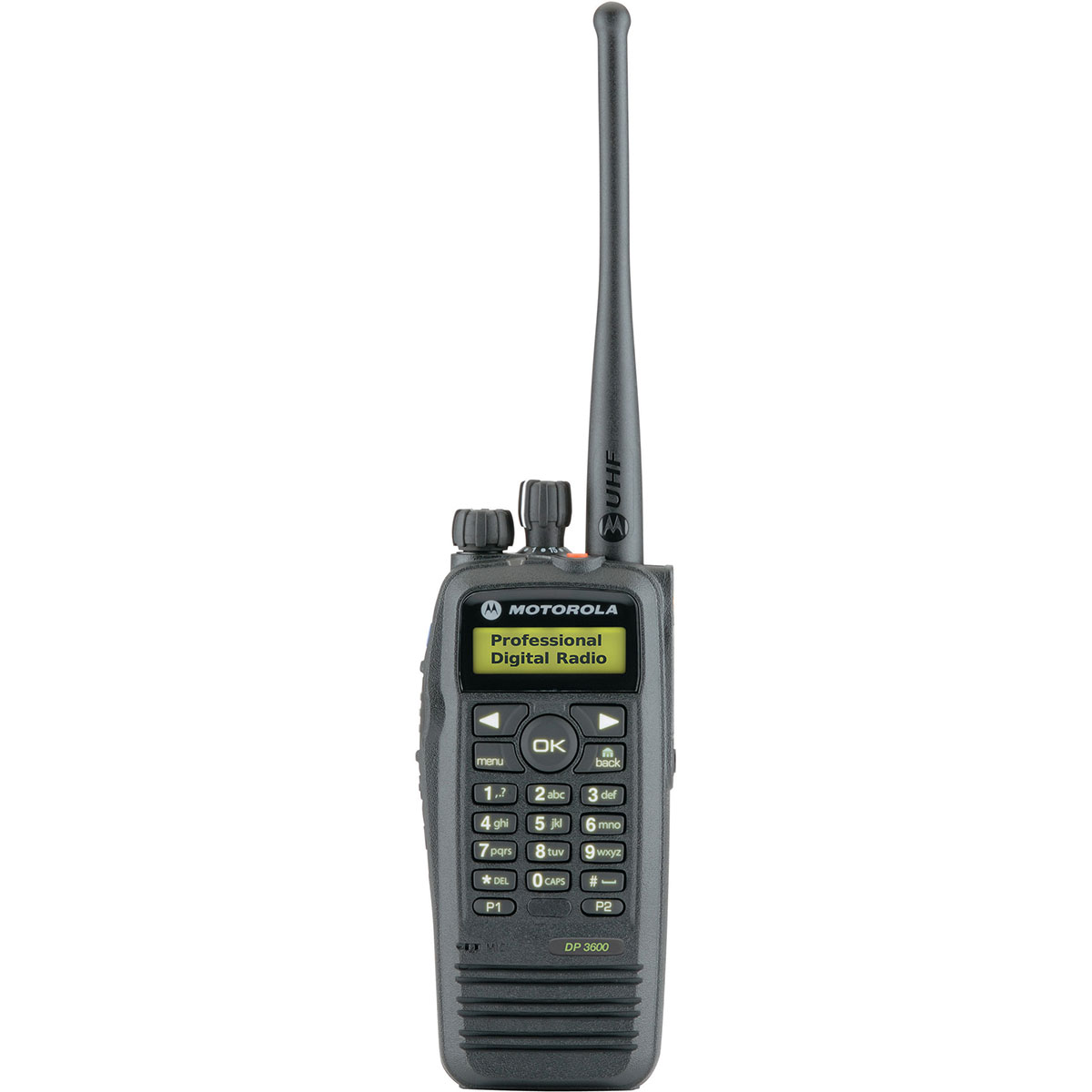

Motorola MOTOTRBO DP3600 / 3601 Two Way Radio

The Motorola MOTOTRBO DP 3600/3601 digital portable two way radio with functional LCD display delivers seamless communication by combining digital technology with portable two way radio functionality. Easily adaptable with your existing system and operational in both digital and analogue modes, it is available with 1,000 channels in either UHF and VHF versions.

The Motorola DP3600 portable digital 2 way radio radio is part of the MOTOTRBO series which delivers increased capacity, text message capability and integrated data communication.

Features & Benefits:

Size & Weight
131.563.535.2 – Weight 360g.

Battery
1500mah Li-Ion including belt clip.

Capacity Plus
A single-site trunking solution enabling over 1,000 users to share and transfer data communication on the same system.

Emergency signaling
Sends an emergency help signal to predefined group or individual.

Rugged design
Fully submersible in up to 1 meter of water for 30 minutes, it is also tightly sealed to protect from wind and dust.

Programmable side buttons
Side buttons can be programmed to enable access to favorite features such as text messaging.

Bright sensors
Tricolor LED indicator provides feedback of scanning, monitoring or calling features.

Emergency button
The emergency button alerts supervisor or dispatcher of an emergency situation.

Contacts list
Holds up to 256 personal contacts.

Flexible display
Menu-driven interface uses icons or text which ensures efficient usability and menu navigation.

Dimensions: 131.5mm x 63.5mm x 35.2mm (HxWxL)
Weight: 360g
Operating Temperature: -30℃~ +60℃
Frequency Range: 136-174 MHz, 403-470 MHz, 450-512 MHz
Channels: 1,000 Channels

Power Output: VHF 5 Watts / UHF 4 Watts Rated (Industrial / Commercial Standard)
(0.5KM – 20KMs range achieved depending on environmental factors)
Battery Power: 1500mAh Li-ion
Shock & Vibration: MIL-STD-810 C/D/E/F
IP Rating: IP57 (Dust protection and water resistant)

Two Way Motorola MOTOTRBO DP 3600/3601 Digital Radio
12 Month Warranty
1500mAh Li-Ion Battery
Single Unit Charger
Belt Clip
Antenna
